16 No light, high head, normally closed, normally open, self-locking reset

Short Description:

Product Model: Q16F
Type:Momentary/Maintained
Material:304 stainless steel housing,PA66
Protection level:IP65, IK10, IP406.
Electrical parameters:3A /250VAC
Contact resistance:≤50Ω
Insulation resistance:≥1000MΩ
Service temperature range:-20℃—55℃
Mechanical life:30 times/min,500,000 times


  • :
  • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. Adopt flame retardant material, safety guarantee, stainless steel shell anticorrosion and dust proof.
    2. Contains PC button, silicone waterproof ring, high performance, solid and reliable.

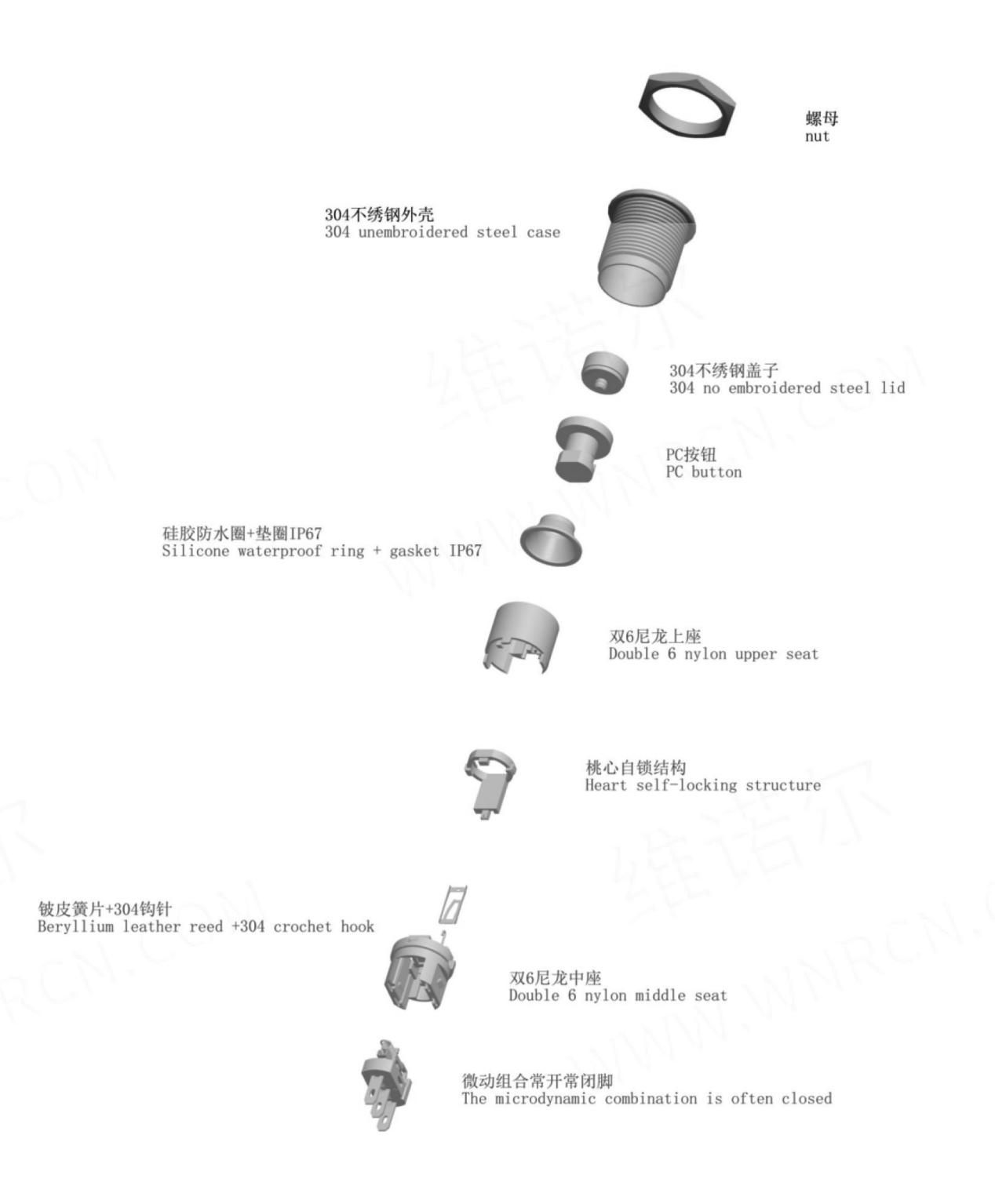

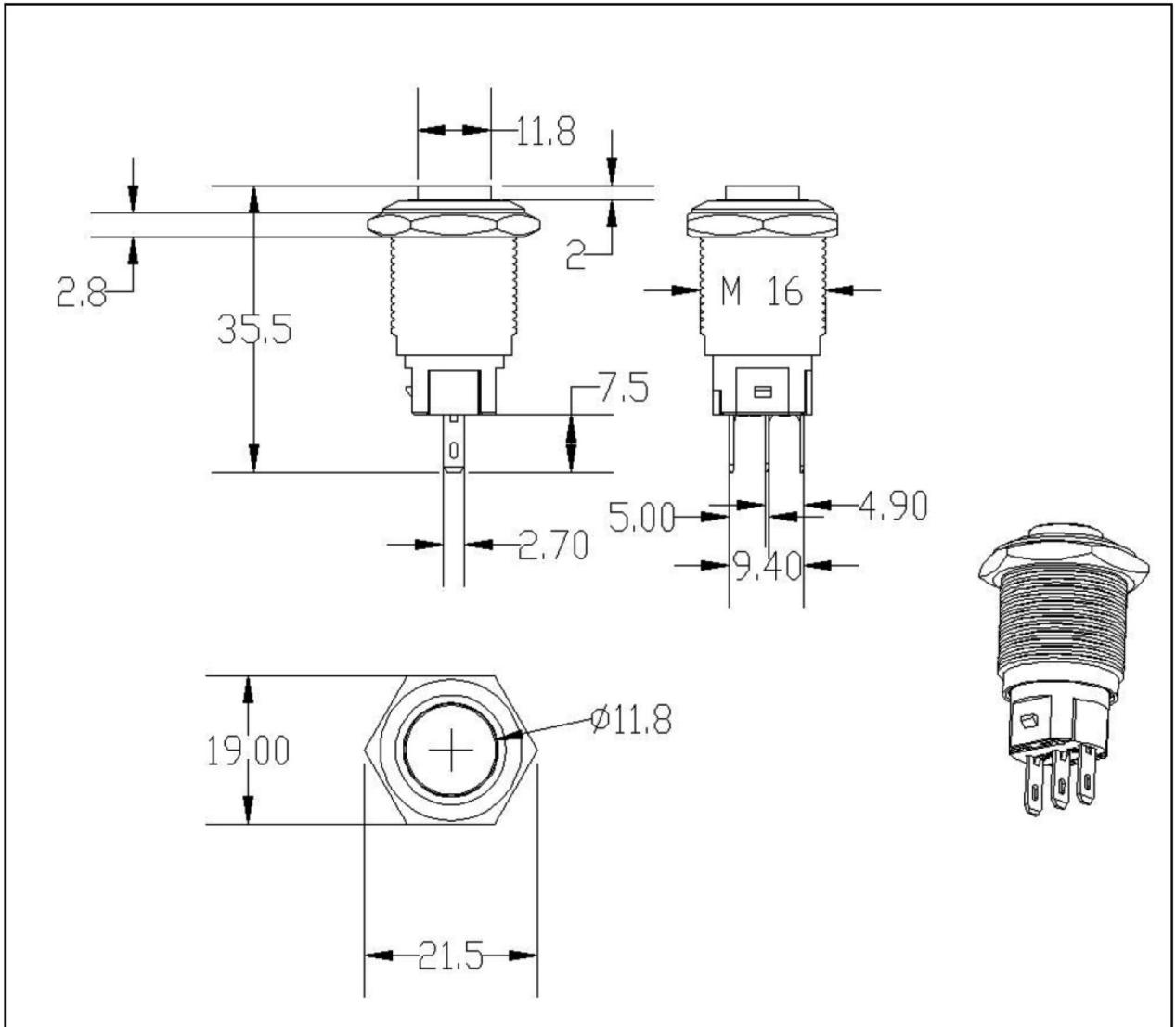

    Product Drawing

    sd
    sd

    Application Areas

    The product can be applied to transportation,safety equipment,household appliances,medical equipment, starter,Bathroom, accesscontrol.

    Package picture

    asd
    asd
